Round Baler Gearbox EP2100-T3 — 80 HP Helical Speed Reducer with 2.1:1 Ratio for Baling and Harvesting Equipment

EP2100-T3 Round Baler Gearbox — 80 HP Gleason Helical Reducer

The EP2100-T3 is an 80 HP (60 kW) round baler gearbox that reduces 540 RPM PTO input to 257 RPM chamber drive output through a 2.1:1 Gleason helical gear ratio. This output speed matches the operating range of most round baler pickup mechanisms, pre-chamber feed systems, and bale-forming roller chains — the components that receive windrow material, compress it into a cylindrical core, and wrap it before ejection.

With 100 Nm continuous output torque and Gleason helical tooth geometry, the EP2100-T3 delivers the smooth, low-pulsation power that baling equipment demands. Unlike spur-gear reducers where each tooth pair engages and disengages abruptly, the helical tooth contact rolls progressively across the tooth face — producing less vibration, lower acoustic noise, and more consistent torque delivery. For a machine that runs at full load for 6-10 hours per day during hay season, this matters in terms of both gear fatigue life and operator comfort.

Korean hay producers and forage contractors in Gangwon-do, Chungcheong, and Jeolla provinces pair this pto gearbox with tractors in the 80-120 HP range during the intensive June-through-August baling window. The unit accepts standard 1-3/8 inch 6-spline PTO connections and uses a flange mounting pattern compatible with most round baler makes.

Technical Specifications

Core parameters for the EP2100-T3. Verify compatibility with your baler's drive input requirements before ordering.

Custom configurations available on request — contact our engineering team for special ratio, shaft, or mounting requirements.

Equipment Applications for the EP2100-T3

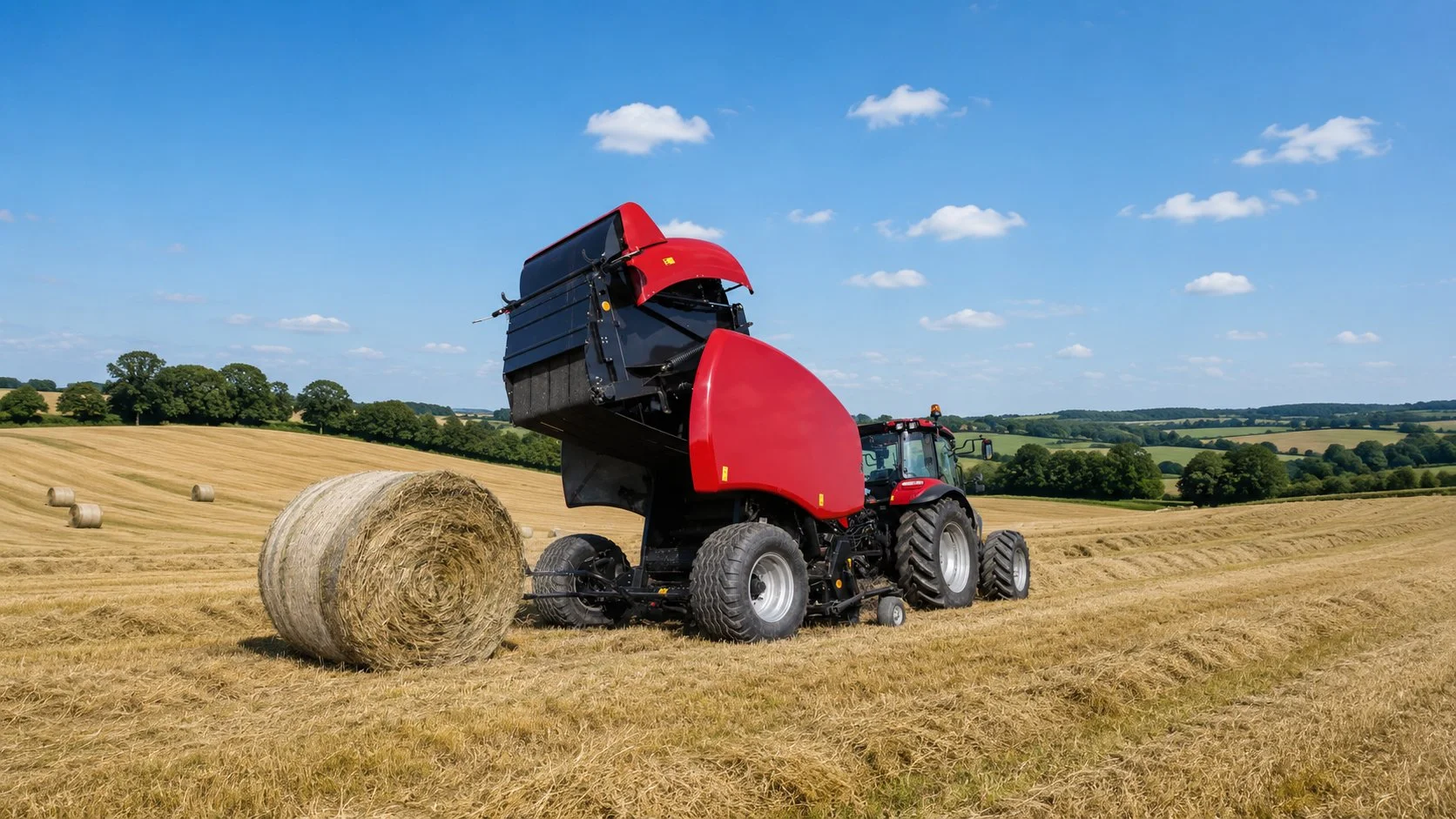

Round Baler Chamber Drives

The primary application for this gearbox. Round balers form cylindrical bales by feeding crop material through a pickup reel into a compression chamber where belts or rollers spin the material into a progressively tighter cylinder. The 257 RPM output at 80 HP drives this entire mechanism — pickup teeth, chamber rollers, and net-wrap system — through a single power input. Korean operators baling timothy hay, Italian ryegrass, and rice straw across Gangwon-do and Chungcheong rely on this agricultural gearbox during the three-month summer harvest window.

Forage Harvester Feed Systems

Some self-propelled and pull-type forage harvesters use a PTO-driven gearbox to power the crop intake rolls and initial chopping drum. The EP2100-T3's 2.1:1 reduction provides the controlled feed speed needed to meter crop material into the chopper at a rate that avoids clogging while maintaining throughput. The 80 HP rating matches the power requirement for medium-capacity units processing 15-25 tonnes of fresh forage per hour.

Large-Capacity Tedder and Rake Drives

High-capacity rotary tedders and twin-rotor rakes that process cut hay for drying sometimes require a gearbox between the PTO and the main drive shaft. The EP2100-T3's moderate reduction ratio and 80 HP throughput suit the larger tedder models with 8-10 meter working widths used by Korean forage contractors managing hay production across multiple farms.

Selecting the Right Gearbox for Your Baler

Baler gearbox selection depends on matching four parameters between your tractor, gearbox, and baler mechanism. Follow this sequence to confirm the EP2100-T3 fits your setup:

1. Confirm tractor PTO speed standard. The EP2100-T3 accepts 540 RPM input. If your tractor has a 1000 RPM PTO, you need a different gearbox model with a higher ratio to reach the same 257 RPM output — a 1000 RPM unit with a 3.9:1 ratio would produce similar output speed.
2. Verify tractor HP at the PTO. The EP2100-T3 is rated for 80 HP (60 kW) continuous throughput. Your tractor must deliver at least this power at 540 RPM PTO speed. Running the gearbox on a tractor with less than 80 PTO HP will result in the baler stalling under full chamber load, particularly when forming the final wraps of a tight bale.
3. Check your baler's required input speed. Most round balers specify 250-270 RPM at the main drive input. The EP2100-T3 delivers 257 RPM — centered in this range. If your baler requires a different speed, calculate the needed ratio: divide 540 by your target RPM to find the required gear ratio.
4. Match the mounting pattern. Measure the bolt circle diameter, bolt size, and pilot bore on your baler's gearbox mounting flange. The EP2100-T3 uses a standard flange interface, but Korean-market balers from older Japanese and domestic manufacturers occasionally use non-standard patterns that require an adapter plate.
5. Confirm output shaft compatibility. The output shaft profile must match the baler's input shaft or coupling. Spline count, diameter, and length all matter — a mismatched spline profile prevents assembly even if the gearbox physically bolts onto the frame.

Contact our engineering team with your baler make, model, and year for a confirmed compatibility check and shaft specification verification.

OEM Baler Gearbox vs. Aftermarket Replacement — What to Expect

When a baler gearbox fails mid-season, operators face a choice between OEM replacement from the baler manufacturer and aftermarket alternatives. The comparison below addresses the factors that matter during the time-pressured Korean hay season.

During the Korean hay season (June–August), a 3-week wait for an OEM gearbox means missing the optimal baling window for first-cut timothy and ryegrass. At typical Korean hay prices, a 2-week production loss on a 50-hectare operation can exceed the cost of the gearbox itself. The EP2100-T3 provides a mechanically equivalent replacement that ships from domestic stock within days — the primary value proposition for time-sensitive seasonal operations.

Disclaimer: OEM references are used solely for compatibility identification. Korea Ever-Power does not manufacture or sell products from baler OEM brands. All trademarks belong to their respective owners.

Industry Standards Governing Baler Drive Systems

• ● ISO 500 — Agricultural Tractor PTO — Defines the 540 RPM (Type 1) and 1000 RPM (Type 3) PTO speed categories, shaft dimensions, and guard zone requirements. The EP2100-T3 input conforms to ISO 500 Type 1 specifications, accepting standard 540 RPM tractor PTO output.
• ● SAE J744 — PTO Speed and Power Test Code — Establishes the protocol for measuring and reporting PTO power output. The 80 HP rating listed in our specifications follows SAE J744 test conditions, giving a directly comparable figure against tractor PTO ratings published by Korean and international tractor brands.
• ● ISO 5673 — PTO Drive Shaft Dimensions — Specifies the physical dimensions of PTO drive shafts including spline profiles, diameters, and length tolerances. The EP2100-T3 input spline matches ISO 5673 standards for 540 RPM tractor pto gearbox connections.
• ● ISO 9001:2015 — Quality Management — Our manufacturing processes follow ISO 9001 documented procedures for gear cutting tolerance, heat treatment parameters, and loaded run-in testing. Each EP2100-T3 unit undergoes a full-load bench test before shipment.

Packaging and Delivery Information

• ◈ Packaging — Each unit is coated with anti-corrosion preservative, wrapped in VCI (Volatile Corrosion Inhibitor) film, and packed in a reinforced plywood crate with foam inserts. The crate protects against handling damage during domestic courier and international freight.
• ◈ Korea Domestic Delivery — Ships from our Incheon warehouse via domestic courier. Delivery to major metropolitan areas (Seoul, Busan, Daegu, Daejeon, Gwangju) within 2-3 business days. Rural agricultural areas in Gangwon-do and Jeolla provinces typically receive within 3-5 business days.
• ◈ International Shipping — Available via sea freight (FCL or LCL) and air freight for urgent orders. FOB Incheon port pricing. Typical sea freight transit times: Japan 3-5 days, Southeast Asia 7-14 days, Australia/NZ 18-25 days.
• ◈ Minimum Order — Single units available for domestic orders. International orders: MOQ 1 unit for air freight, MOQ 5 units for sea freight to justify shipping costs.

Build a Complete Baler Drive Train

The EP2100-T3 connects to the tractor through a heavy-duty pto shaft rated for at least 80 HP continuous power. For round baler applications, specify a shaft with a friction clutch — balers generate high startup torque when engaging a partially formed bale, and a friction clutch prevents drivetrain shock that would damage gear teeth over time.

Our agricultural gearbox range also includes units for square balers, hay tedders, rotary rakes, and forage harvester gearbox applications — all available with factory-direct pricing and domestic Korean delivery.

Frequently Asked Questions

What makes Gleason helical teeth different from standard helical gears?
Gleason tooth geometry uses a specific profile and contact pattern optimized for high-load, sustained-duty gear sets. The tooth shape distributes contact stress across a wider face area than generic helical profiles, reducing peak pressure and extending fatigue life under the constant loads typical of baling operations — where the gearbox runs at near-maximum rating for hours without interruption.

Can I use the EP2100-T3 on a 1000 RPM PTO tractor?
No. At 1000 RPM input, the 2.1:1 ratio would produce 476 RPM output — nearly double the safe operating speed for most round baler chamber mechanisms. Running baler components at this speed risks equipment damage and bale quality problems. Contact us for 1000 RPM baler gearbox options with higher reduction ratios.

How do I know when the gearbox needs oil change during baling season?
During intensive baling (8-10 hours daily), check oil level every morning before starting. Change oil at 500-hour intervals or if oil appears dark, foamy, or contains visible metal particles. The 80 HP power throughput generates more heat than lighter-duty gearboxes — high-quality synthetic 80W-90 GL-5 extends drain intervals by 20-30% compared to mineral oil.

Will this gearbox fit Claas, New Holland, or John Deere round balers?
The EP2100-T3 uses a standard flange mounting interface compatible with many baler brands. Compatibility is confirmed model-by-model — contact our engineering team with your specific baler make, model, and year for a dimensional verification.

What happens if the baler jams and the gearbox output stops suddenly?
The PTO driveshaft friction clutch (which we recommend) will slip and absorb the torque spike before it reaches the gearbox gears. If the gearbox does not have adequate overload protection, a sudden jam can damage the output shaft splines or crack a gear tooth. Always use a friction-clutch PTO shaft on baling equipment.

Is the 100 Nm output torque sufficient for large round balers?
The 100 Nm figure is the continuous (nominal) rating. Peak torque during bale wrapping and ejection is higher. The Gleason helical gear set handles short-duration peak loads of 150-180% of the nominal rating without damage. For balers producing bales above 1.5 meters in diameter with very dense crop material, verify the baler manufacturer's required input torque against the EP2100-T3 specification.

Feedback from Baling Operations

---

Park Sung-jin, Forage Contractor — Pyeongchang, Gangwon-do, March 2025

"Our OEM gearbox failed in week 3 of baling season last year. The dealer quoted 4 weeks for an import replacement — unacceptable when hay is on the ground. Found the EP2100-T3, received it in 3 days, installed in an afternoon. Baled another 1,200 round bales through the rest of the season without a problem. Keeping a spare on hand this year."

---

Seo Ji-won, Dairy Farm Manager — Hoengseong, Gangwon-do, January 2025

"280 hectares of timothy and orchard grass baled annually. The EP2100-T3 on our John Deere 568 round baler has 900 hours — two full seasons. Output speed matches the original gearbox exactly. Oil analysis at 500 hours showed iron particle counts within normal range. At 40% less than the OEM part, the economics are straightforward."

---

Lee Kyung-hwan, Agricultural Cooperative — Gochang, Jeollabuk-do, October 2024

"Our cooperative runs 6 round balers during rice straw baling season in October. Two gearboxes needed replacement this year. The EP2100-T3 shipped from Incheon and arrived in Gochang within 4 days — fast enough that we lost only 2 days of baling, not the 3-4 weeks an OEM order would have cost us."

---

Kim Ha-neul, Equipment Dealer — Cheonan, Chungcheongnam-do, August 2024

"Started stocking the EP2100-T3 for emergency baler gearbox replacements during hay season. Sold 18 units in the first summer. Every customer was a farmer or contractor who could not wait for an OEM import. Zero returns, zero warranty claims. The seasonal urgency makes this product sell itself."

---

Choi Won-sik, Hay Producer — Yeongju, Gyeongsangbuk-do, June 2024

"Small operation — 40 hectares of Italian ryegrass. The EP2100-T3 runs smooth and quiet compared to the worn OEM unit it replaced. Bale density and shape have been consistent. The Gleason helical teeth make a noticeable difference in vibration — less fatigue sitting on the tractor for 8-hour baling days."
