75 HP Heavy Duty Post Hole Digger Gearbox — 3:1 Speed Reducer for 3-Point Auger Systems on Agricultural and Fencing Operations

75 HP Post Hole Digger Gearbox — High-Torque 3:1 Reducer for Auger Operations

This 75 HP post hole digger gearbox converts 540 RPM tractor PTO input to 180 RPM auger output through a 3:1 reduction ratio. The three-fold speed reduction triples the available torque at the auger bit — the mechanical advantage required to bore through the compacted clay soils, decomposed granite subsoil, and root-dense ground conditions found across Korean agricultural regions.

The cast iron housing supports 3-point hitch mounting on tractors from 50 to 100 HP and accepts auger bits ranging from 150 mm (6 inch) to 600 mm (24 inch) diameter. The input shaft uses the standard 1-3/8 inch 6-spline PTO profile conforming to ISO 500 Type 1 specifications. Internal gears are hardened alloy steel with carburized tooth surfaces — essential for the repeated impact and stall loads that auger drilling generates when the bit strikes buried rocks or transitions between soil layers of different density.

Korean fencing contractors, vineyard and orchard operators, and livestock farms across Gangwon-do, Chungcheong, and Gyeongsang provinces depend on this pto gearbox for fence post holes, fruit tree planting cavities, grape trellis anchor points, and foundation pier drilling. The 75 HP rating provides a substantial power margin for oversized auger bits and difficult ground — a margin that lighter-duty 25-40 HP post hole gearboxes cannot match in rocky Korean mountain-valley terrain.

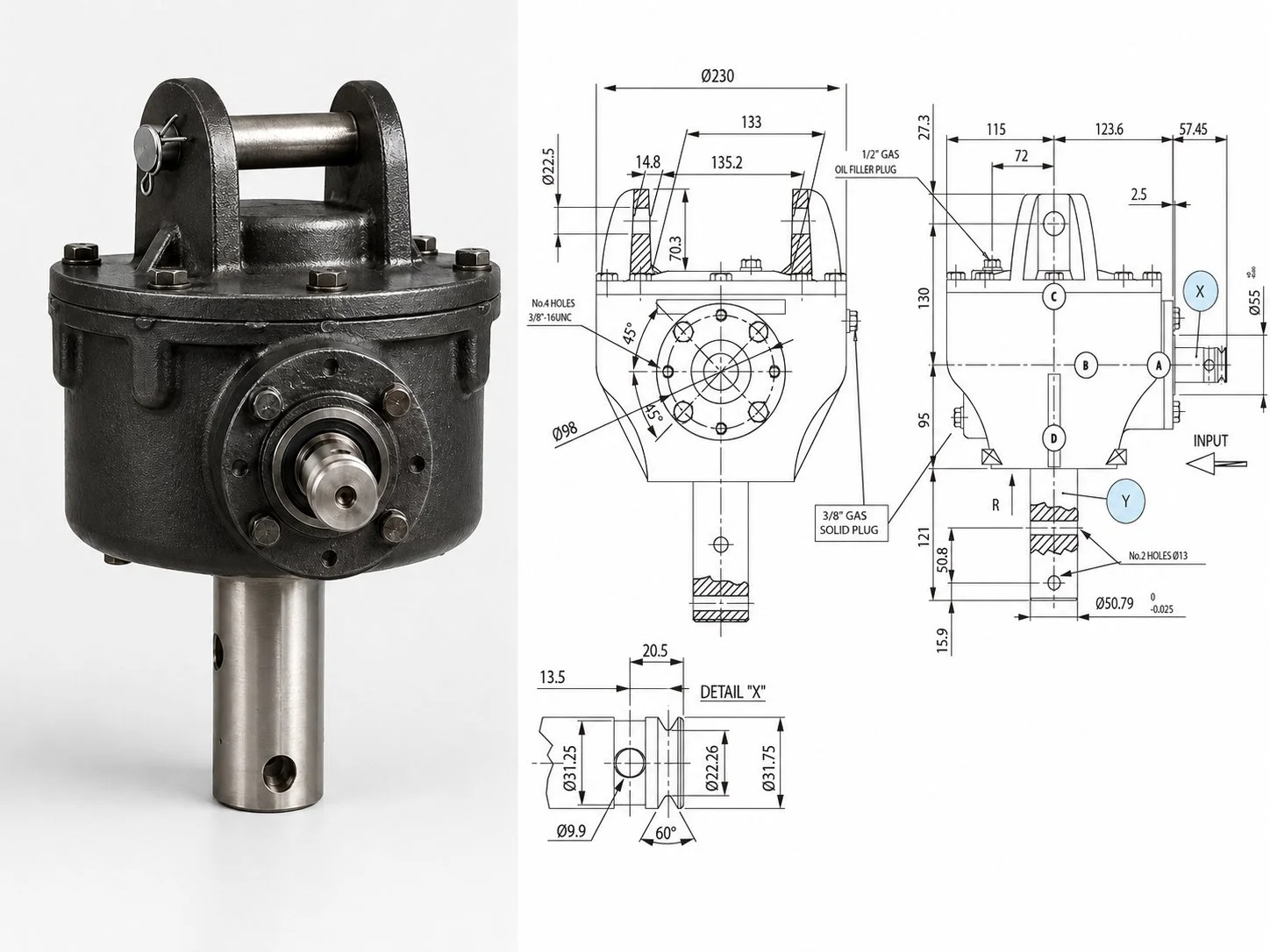

Technical Specifications

Parameters for the 75 HP heavy duty post hole digger gearbox. Verify auger bit compatibility and tractor 3-point hitch category before ordering.

Why the 75 HP Rating Makes a Practical Difference

Where Korean Operations Put This Gearbox to Work

Livestock Fence Post Installation

Cattle and dairy farms in Gangwon-do and Chungcheong provinces install thousands of fence posts per year for rotational grazing paddocks, perimeter containment, and wildlife exclusion. A 300 mm (12 inch) auger at 180 RPM bores a 600 mm deep post hole through typical Korean mountain-valley clay-loam soil in under 30 seconds. At 200-500 posts per fencing project, the time savings over manual digging repay the gearbox for post hole diggers investment within a single season.

Orchard and Vineyard Tree Planting

Apple orchards in Chungju and Yeongju, pear orchards in Naju, and grape vineyards across Gyeongsang use 450-600 mm augers to drill planting holes for new trees and vine posts. The 75 HP rating drives these large-diameter bits through the decomposed granite subsoil common in Korea's mountain-foothills orchard zones — a soil type that stalls smaller gearboxes when the auger transitions from topsoil into dense weathered rock at 400-500 mm depth.

Solar Panel Foundation Piers

Korea's expanding agricultural solar installations require ground-mounted panel arrays with pier foundations drilled into farmland. A 250 mm auger at 1.0-1.5 meter depth is the typical specification. The 75 HP agricultural gearbox handles the sustained boring load across hundreds of pier locations per installation site — a throughput requirement that makes a tractor-mounted PTO auger far more practical than hydraulic excavator-mounted units for this repetitive, standardized operation.

Single-Stage vs. Multi-Stage Reduction in Post Hole Digger Gearboxes

Post hole digger gearboxes use either a single gear pair (single-stage) or two sequential gear pairs (multi-stage) to achieve their reduction ratio. This 75 HP unit uses a single-stage 3:1 reduction. The choice between approaches affects size, efficiency, cost, and output torque capacity.

For the majority of Korean agricultural post hole drilling — fence posts in clay-loam, orchard planting in weathered granite, and solar pier foundations in alluvial soil — the single-stage 3:1 reduction provides the optimal balance of drilling speed and torque. Multi-stage units are justified only for extreme conditions: permafrost zones, solid limestone, or unweathered bedrock that Korean agricultural land rarely presents. The single-stage design also means fewer bearings and seals to maintain, reducing long-term ownership cost.

Operating Conditions and Terrain Suitability

• ◆ Korean Clay-Loam Valley Soils — The predominant soil type across Chungcheong and Jeolla agricultural zones. Clay content ranges from 20-40%, creating a dense, cohesive matrix that resists auger penetration but does not produce the sharp impact loads of rocky ground. The 3:1 ratio and 75 HP rating handle this soil type at full auger diameter with minimal stall risk.
• ◆ Decomposed Granite Subsoil (Mountain-Foothills) — Found beneath 300-500 mm of topsoil in Gangwon-do and northern Gyeongsang orchards. This weathered rock layer offers high resistance but breaks apart under sustained auger rotation rather than generating the sudden shock loads of solid stone. The 75 HP power margin prevents stalling at the transition between topsoil and granite.
• ◆ Wet Season Conditions (July-August) — Korean monsoon season saturates topsoil, reducing auger friction but increasing the risk of hole sidewall collapse. The 180 RPM output speed is slow enough to extract spoil cleanly without over-agitating saturated sidewalls. Post-drilling, holes in wet ground require immediate post or pier insertion before water accumulation.
• ◆ Winter Frozen Ground (-10°C to -20°C) — Northern Korean provinces experience surface frost penetration of 200-400 mm in January and February. The 75 HP rating provides enough power to break through the frozen crust, after which the unfrozen subsoil drills normally. For deeper frozen layers (above 500 mm), pre-drilling with a smaller pilot auger followed by the full-size bit reduces gearbox loading.
• ◆ Sloped Terrain (Orchard Hillsides) — Tractor stability on Korean hillside orchards limits the safe operating gradient to approximately 15-20%. On steeper terrain, the 3-point hitch geometry keeps the gearbox centered below the tractor's roll axis, but operators must ensure the tractor's rear ballast and tire width provide adequate stability during the high-torque drilling phase.

Field Report: Vineyard Trellis Installation in Yeongdong

The vineyard required 2,400 holes across 8 hectares for concrete trellis posts supporting a horizontal-arm training system. Soil core samples showed 250 mm of sandy loam topsoil over moderately weathered granite — a condition that had previously stalled the operator's 30 HP post hole digger gearbox at every third or fourth hole when the auger reached the granite layer.

With the 75 HP unit, the auger drilled through the granite transition without pausing. The crew completed 80-100 holes per day (6-hour drilling sessions), finishing all 2,400 holes in 28 working days. No gearbox stalls occurred during the project. Oil level remained stable with one top-off at the midpoint. The 180 RPM output speed produced clean holes with minimal sidewall disturbance — important for the concrete-set posts that require a snug fit against undisturbed soil for lateral stability under wind and crop load.

The owner estimated the 75 HP gearbox saved approximately 12 working days compared to the same scope using a lighter-duty unit (accounting for stall recovery time and reduced daily output in rocky ground).

Pair With Compatible Drive Components

The gearbox connects to the tractor through a pto shaft rated for at least 56 kW (75 HP) continuous power with a shear bolt overload clutch. A shear bolt — rather than a friction clutch — is the correct choice for post hole digger applications: when the auger binds on an immovable obstruction, the shear bolt breaks cleanly and stops the auger within one revolution, preventing injury and drivetrain damage. Friction clutches can slip gradually and allow partial rotation that twists the operator's grip.

For farms running multiple implements alongside the post hole digger, our agricultural gearbox range covers rotary tillers, spreaders, mowers, and balers — all available through our tractor pto gearbox catalog with factory-direct pricing and Korean domestic delivery.

Frequently Asked Questions

What auger bit diameters can this gearbox handle?
The 75 HP rating supports auger bits from 150 mm (6 inch) through 600 mm (24 inch). Larger diameters require more power — a 600 mm bit in compacted clay needs roughly 50-60 HP, leaving a 15-25 HP reserve on this unit. For augers above 600 mm, contact us for higher-rated gearbox options.

Is 180 RPM too slow for efficient drilling?
No — 180 RPM is the standard auger speed range for PTO post hole diggers. Higher speeds create excessive centrifugal force that flings soil outward before the flights can lift it vertically, resulting in a dirty hole with material falling back in. The 180 RPM rate maintains clean soil extraction while tripling the available torque for penetrating hard ground.

What happens when the auger hits solid rock?
The shear bolt on the PTO shaft should break, stopping the auger. If it does not break (bolt too large for the application), the tractor PTO clutch will slip. Never hold the auger against solid rock with the PTO engaged — the stall torque can exceed gearbox gear and bearing ratings. Reposition the hole location and try again.

Can I use this gearbox on a 1000 RPM PTO?
At 1000 RPM input, the 3:1 ratio would produce 333 RPM output — too fast for safe auger operation and above the bearing speed rating. Use only on 540 RPM PTO tractors. Contact us for 1000 RPM post hole digger gearbox alternatives with appropriate ratios.

How deep can the auger drill with this gearbox?
Depth is limited by auger bit length, not gearbox capacity. Standard auger bits reach 900-1,200 mm. Extension shafts add 600-900 mm per section. The gearbox handles the increased torque from deeper holes as long as total power demand stays below 75 HP — which it will for all standard agricultural post hole depths.

What maintenance does a post hole digger gearbox need?
Check oil level before each use session. Change oil at 50 hours (break-in), then every 500 hours or annually. Inspect the output shaft seal and cross-pin retainer after every 100 holes — auger vibration loosens hardware over time. Grease the 3-point hitch pins and PTO shaft U-joints at the same interval.

What Operators Report From the Field

---

Han Min-jae, Fencing Contractor — Pyeongchang, Gangwon-do, April 2025

"We install 3,000 to 4,000 fence posts per season across dairy farms in Gangwon. The 75 HP gearbox drills through the local decomposed granite subsoil without stalling — our old 40 HP unit stopped every few holes. Averaging 100-120 posts per day now versus 60-70 before. The time savings pay for the gearbox in the first month of the season."

---

Jeon Su-yeon, Vineyard Owner — Yeongdong, Chungcheongbuk-do, February 2025

"Drilled 2,400 trellis post holes for our new Shine Muscat block. The 200 mm auger went through the granite layer at 300 mm depth without a pause. On our old gearbox, that transition point was where we lost 15-20 minutes per hole clearing jams. The 75 HP unit made a two-month project into a four-week job."

---

Chung Tae-woo, Solar Farm Installer — Boryeong, Chungcheongnam-do, November 2024

"We drill foundation piers for ground-mount solar arrays. 250 mm auger, 1.2 meter depth, alluvial soil. The 75 HP gearbox runs all day at 80-90 piers without complaining. Previous project with a rental 30 HP unit averaged 40 piers per day with frequent overheating. Purchased our own 75 HP unit after that experience."

---

Yun Hee-soo, Apple Orchard Manager — Chungju, Chungcheongbuk-do, September 2024

"Replanted 800 apple trees this fall. Used a 450 mm auger for the planting holes — the 75 HP gearbox handled it easily in our heavy clay soil. Previous years we hand-dug half the holes because our smaller gearbox could not handle the 450 mm bit. Big improvement in planting speed."

---

Oh Kyung-min, Equipment Dealer — Andong, Gyeongsangbuk-do, July 2024

"Stocking the 75 HP model fills a gap in the Korean market. Most imported post hole diggers come with 25-40 HP gearboxes that work fine in soft flatland but struggle in our rocky Gyeongsang soils. Farmers who upgrade to 75 HP immediately notice the difference. Strong repeat referral business from this product."
